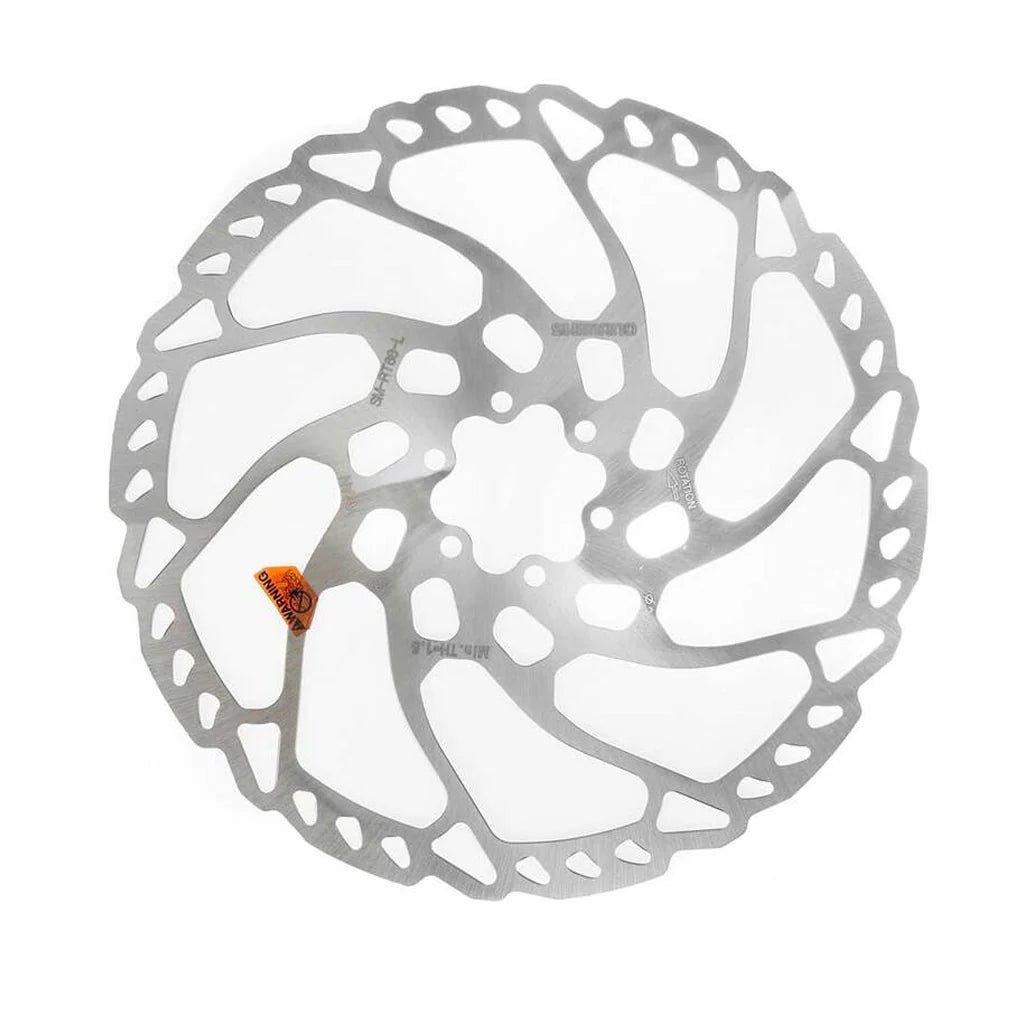

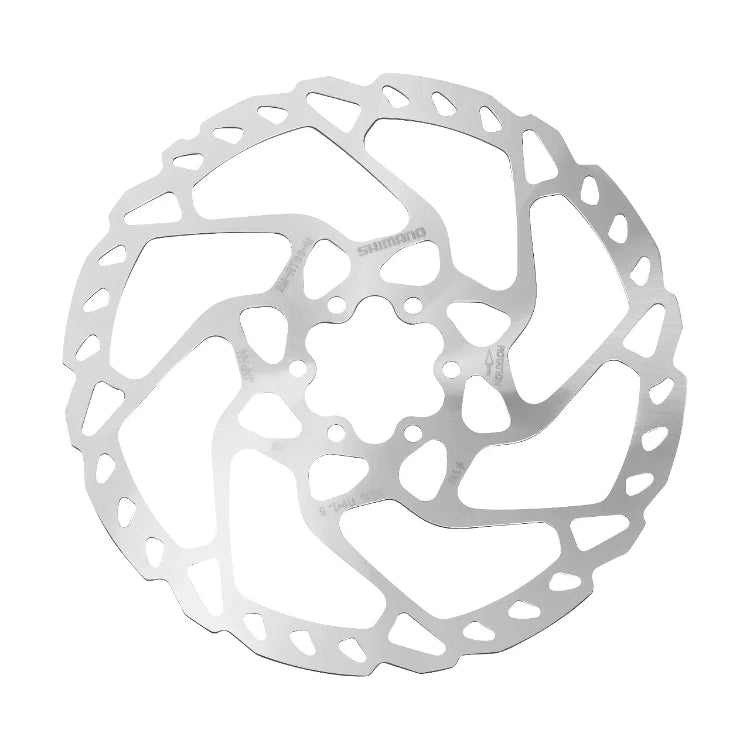

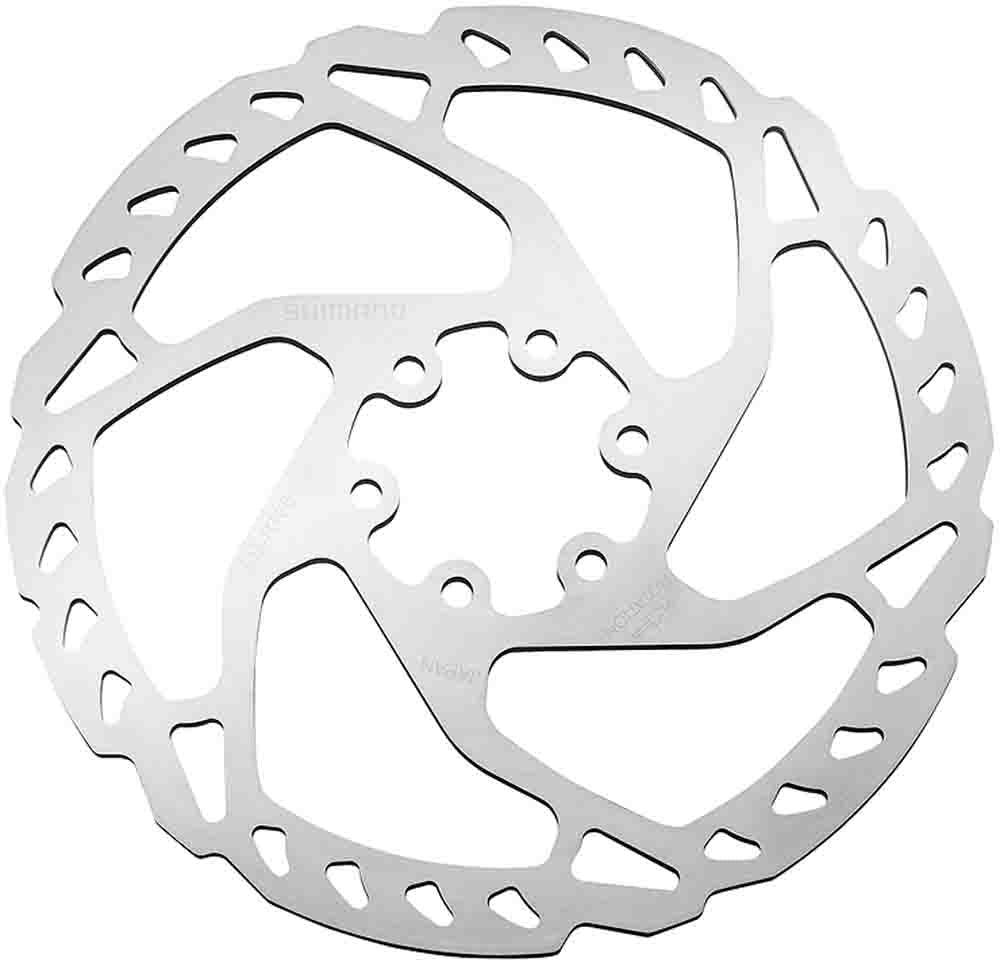

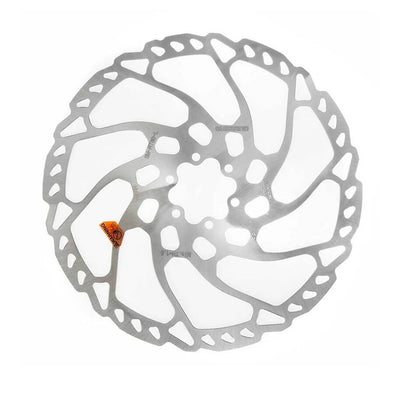

Shimano SM-RT66 6-Bolt Disc Brake Rotor 160mm / 180mm

The correct rotor for most Shimano disc brake builds. Reliable, proven, universally compatible.

The SM-RT66 is Shimano's SLX-grade 6-bolt disc brake rotor: the standard against which most other rotors in this price range are measured. Shimano's SM-RT66 6-bolt disc brake rotors deliver consistent stopping power in all riding conditions, with a reliable anti-loosen plate construction that makes for quick and secure installation. It is the rotor we specify on Evercoast Passage builds and the rotor we stock for our eBike brake upgrade program. Not because it is the most expensive option available, but because it is the correct specification for the applications we build for.

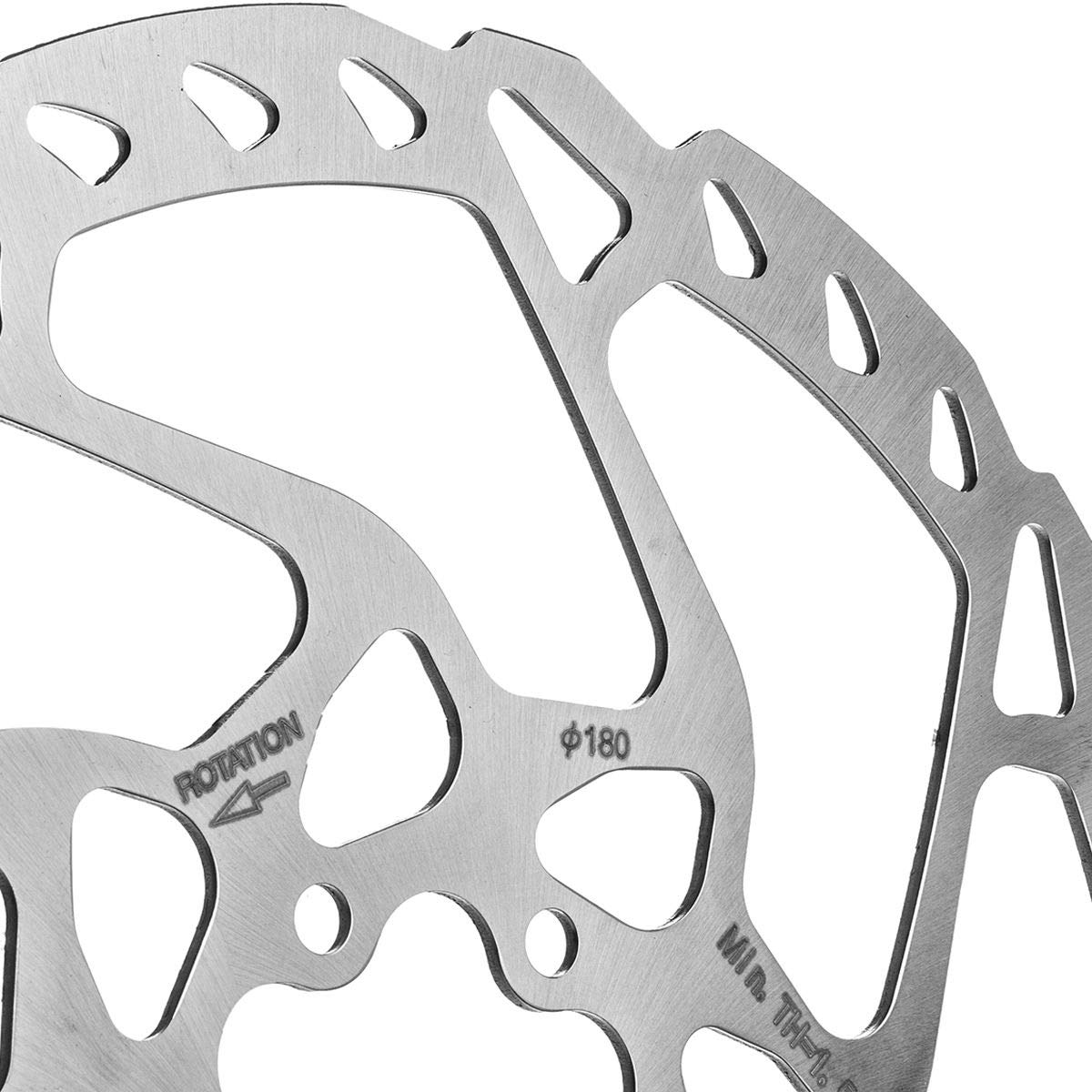

Precision-Cut Stainless Steel Braking Surface Precision cut and drilled stainless steel braking surface improves pad clearing in muddy conditions whilst aiding cooling under high load. The cutouts are not decorative: they channel debris away from the pad contact zone and increase the surface area exposed to airflow, which reduces heat buildup under sustained braking. In Vancouver conditions where mud, grit, and water are present for eight months of the year, this matters.

Resin and Metal Pad Compatible Unlike the SM-RT56 which is restricted to resin pads, the SM-RT66 is resin and metal pad compatible, giving riders the flexibility to run their compound of choice or switch seasonally between quieter resin for dry conditions and more powerful sintered metal for wet and muddy riding. One rotor works with both pad types: no need to match your rotor specification to your pad choice.

Universal 6-Bolt Compatibility The 6-bolt ISO mount is the most widely used rotor mounting standard in the world. Compatible with all standard 6-bolt hubs, including the Novatech 791SB and 792SB hubs we use on the Passage and Passage Pro builds. No lockring tool required, no proprietary installation process. Six T25 Torx bolts, torqued to 4-5 Nm, and the rotor is done.

Why 180mm for eBikes The 160mm rotor is the correct specification for standard road and gravel builds where weight and caliper clearance are the primary considerations. For hub motor eBikes, which typically weigh 25–30 kg with a rider aboard, 180mm is the correct specification. The larger swept area increases stopping power and, critically, increases the thermal mass available to absorb heat under repeated hard braking in stop-and-go commuting. A smaller rotor on a heavy eBike runs hotter, which causes brake fade precisely when you need stopping power most. When we install brake upgrades on eBikes at the Evercoast workshop, 180mm is our standard rotor recommendation regardless of what the bike shipped with.

Specifications

Size Guide

160mm: road, gravel, and cyclocross builds on standard bicycles. The correct size for Passage and Passage Pro complete builds with Shimano GRX or CUES groupsets. Fits most standard post mount and flat mount calipers without an adapter.

180mm: eBike brake upgrades, heavier riders, loaded touring, and riders who want more stopping power and better heat management. Our standard recommendation for all hub motor eBike brake upgrades. Requires a post mount adapter when used with standard post mount calipers, adapter available separately.

Compatibility Notes

Sold individually: one rotor per listing. A complete front and rear build requires two rotors.

6-bolt hubs only: not compatible with centre-lock hubs. For centre-lock hubs, a 6-bolt to centre-lock adapter is available separately.

Adapters: 160mm rotors typically install without adapters on standard post mount caliper setups. 180mm rotors require a post mount adapter to raise the caliper to the correct height. Adapter required and sold separately — ask us at the workshop and we will confirm the correct adapter for your specific frame and fork.

Bolts: rotor bolts are included. Standard M5 T25 Torx rotor bolts.

Available in 160mm and 180mm. Sold individually.
